Ductless Design Tools

Sales Builder Pro is the only solution that includes ductless design calculations so you can even win ductless jobs on a single trip.

We have exclusive ductless design features for the following OEM equipment:

American Standard
LG
Mitsubishi Electric Trane
Trane
Fujitsu

Just enter a piping layout, visually select compatible indoor units, and all design considerations are checked. This prevents you from making the most common design mistakes.

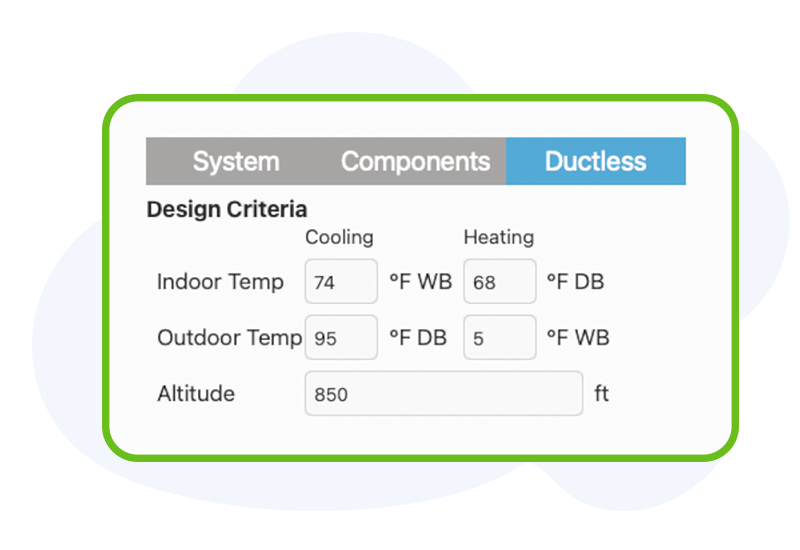

Set your design criteria

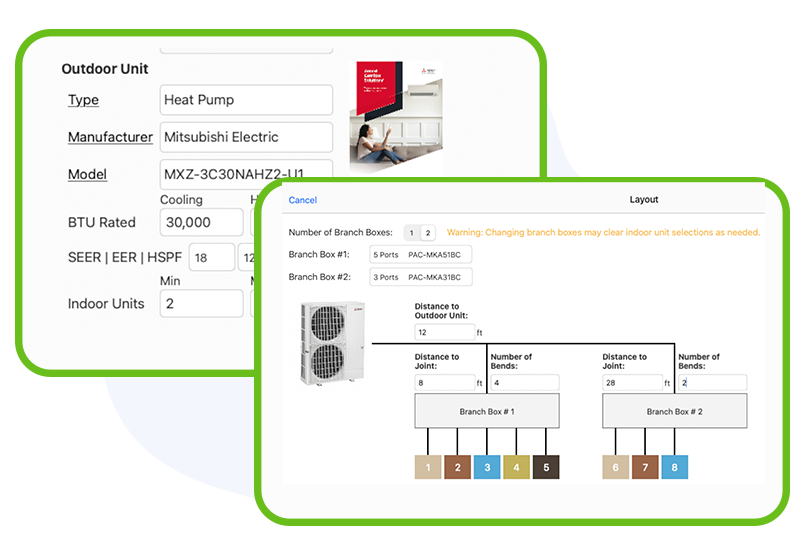

Select an outdoor unit and enter your piping layout.

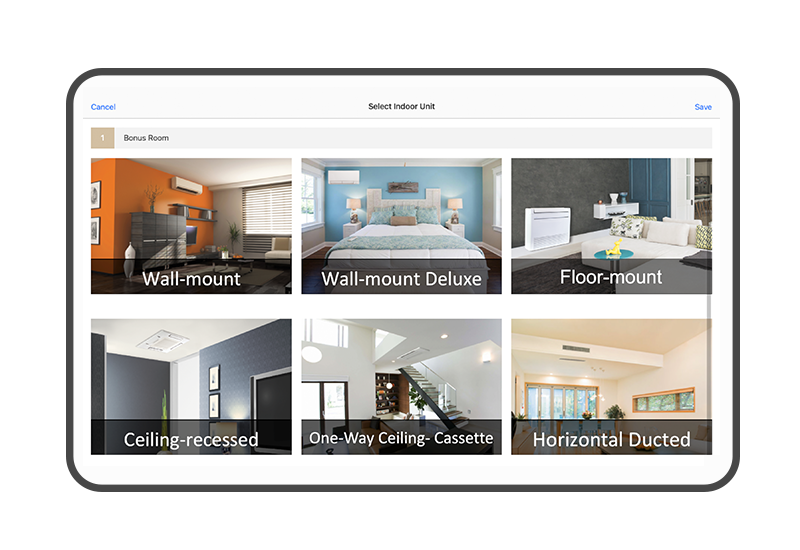

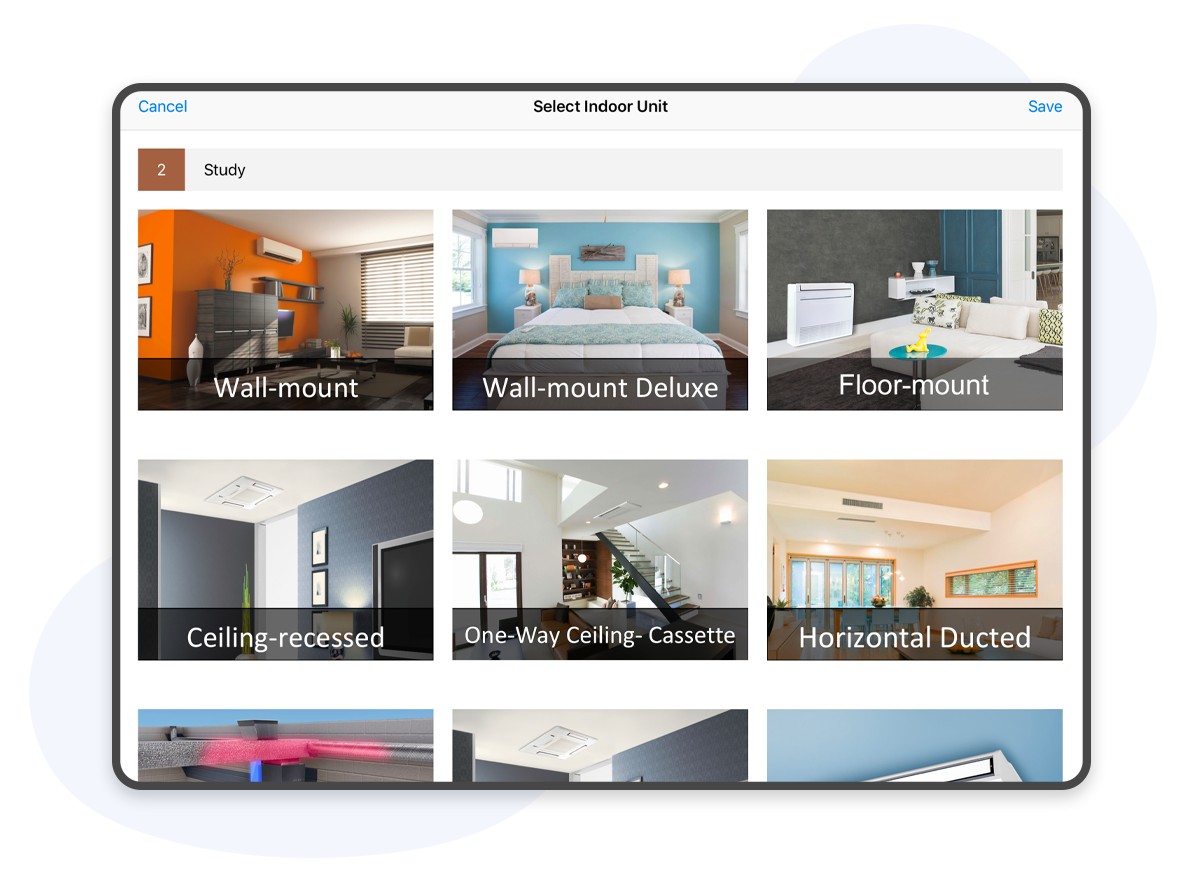

Virtually select an indoor unit.

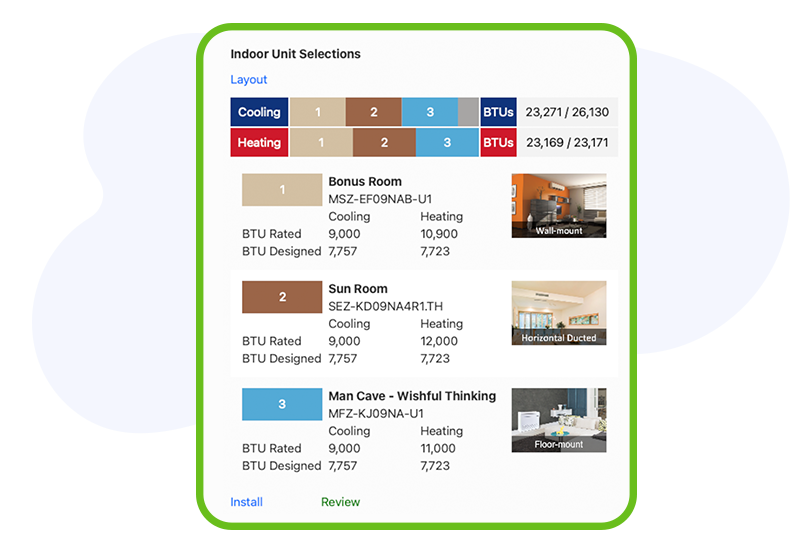

View your design - see the heating and cooling capacity room by room,

Example: Mitsubishi Electric Trane HVAC for ductless brands

Our OEM partnership with Mitsubishi Electric Trane HVAC for ductless brands means that over 4,700 rules and math formulas are managed by the app. We create and add a branded proposal banner with your logo, colors, and style.

Everything Is Organized
For You

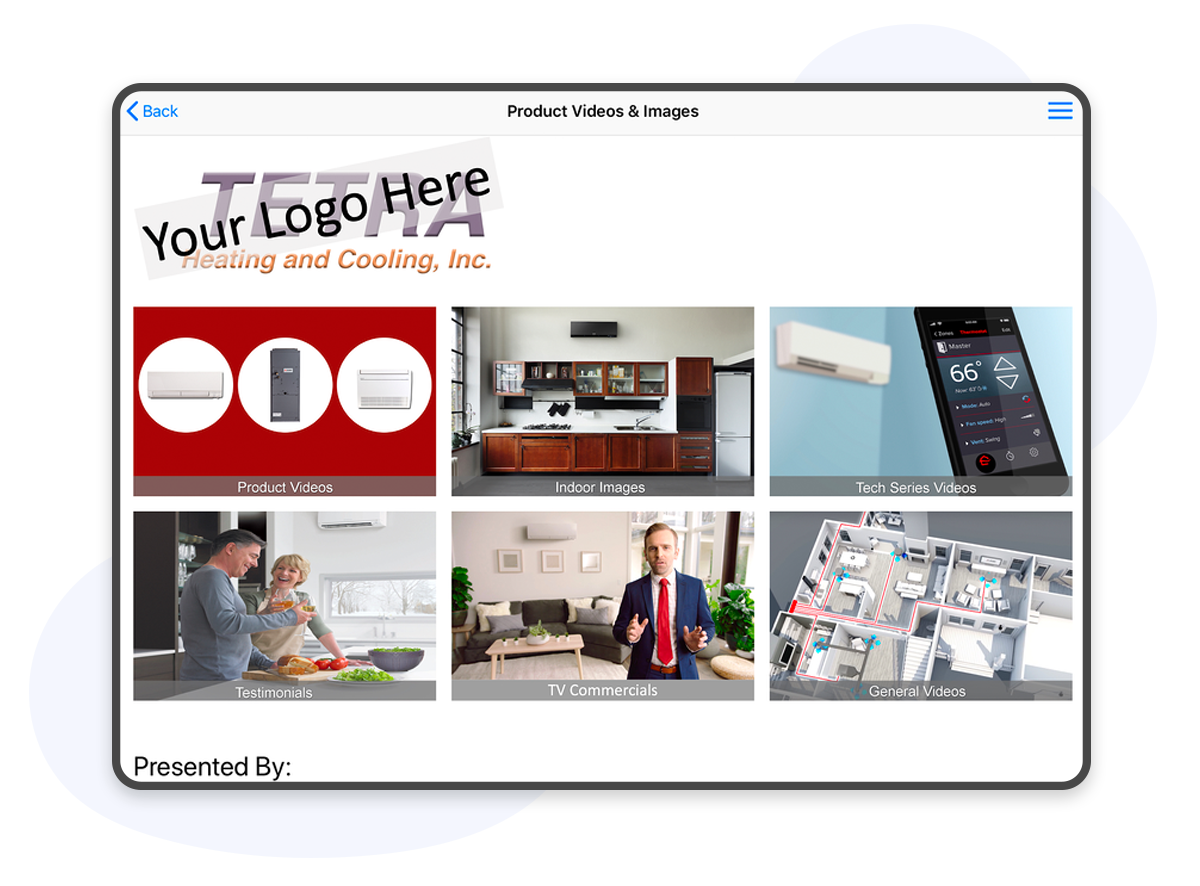

Never Show Up Without the
Right Brochure Again

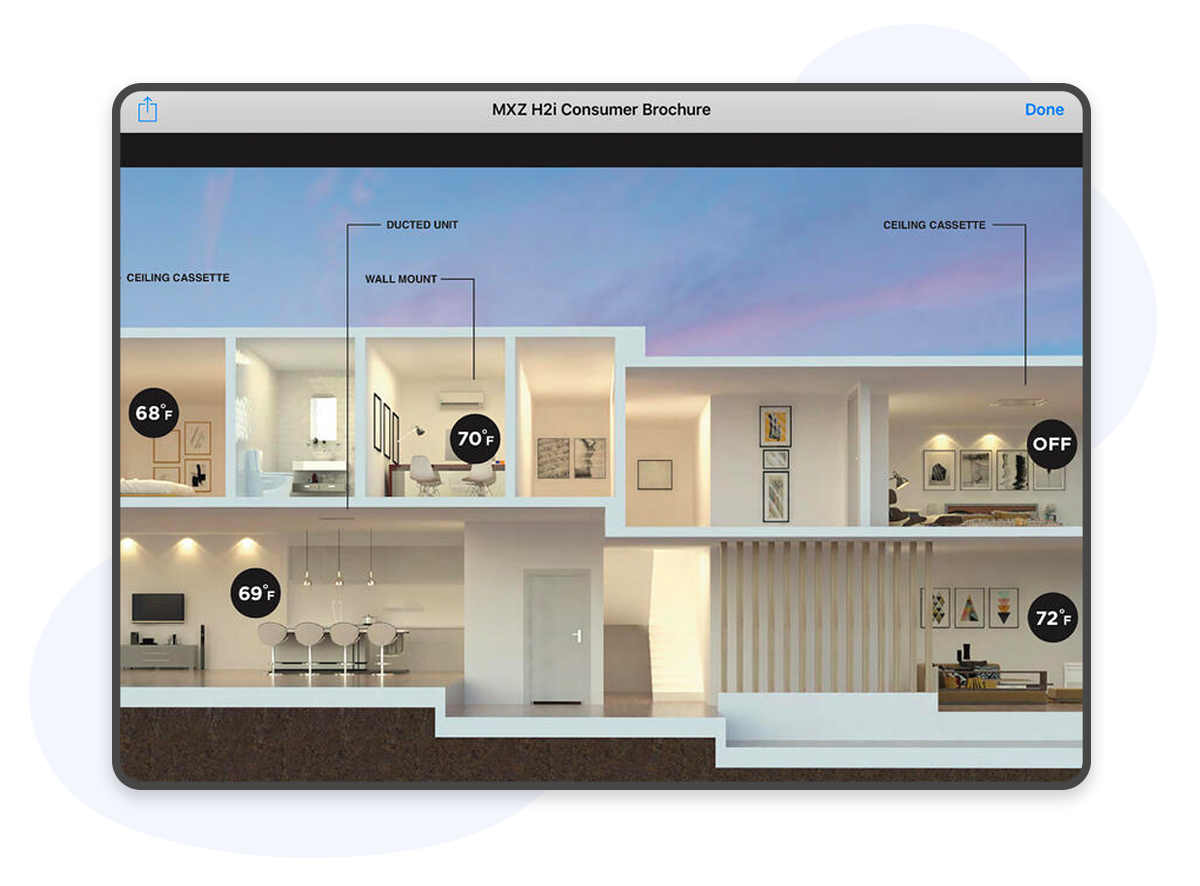

Educate Consumers to
Win Deals Faster

American Standard, Mitsubishi Electric Trane, and Trane Features

M-Series and Equivalent Models Included

All M-Series indoor and outdoor units carried by your distributor are included.

P-Series and Equivalent Models Included

All P-Series indoor and outdoor units carried by your distributor are included.

Equivalent Pipe Length Adjustments

The piping layout captures length and number of bends. The app then calculates the equivalent pipe length and adjusts capacity. It won't accept an equivalent pipe length outside of the design range in order to prevent mistakes.

Altitude Adjustments

The app adjusts capacity based on altitude. Save your local altitude in settings. You can adjust for the working altitude of any job outside your local area.

Maximum Pipe Length Check

The app knows the maximum pipe length for all units; it checks so you don't exceed this on your layout. The app won't accept an equivalent pipe length (based on the number of bends) outside of the design range to prevent mistakes.

Ductless Layout

Layout view captures pipe length, bends, branch boxes, distribution pipe (joint), and IDU height above or below ODU.

Avoids Common Mistakes*

It won't let you enter an out-of-range value.

LG Features

Residential and Light Commercial HVAC Products Included

Please contact IMS for a full list of supported products.

Equivalent Pipe Length Adjustments

Altitude Adjustments

The app adjusts capacity based on altitude. Save your local altitude in settings. You can adjust for the working altitude of any job outside your local area.

Maximum Pipe Length Check

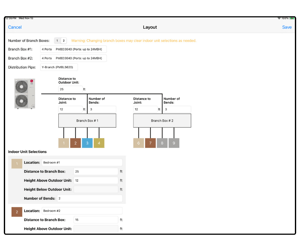

Ductless Layout

Layout view captures pipe length, bends, branch boxes, distribution pipe (joint), and IDU height above or below ODU.

Avoids Common Mistakes*

It won't let you enter an out-of-range value.

Fujitsu Features

Fujitsu Airstage Models Included

Please contact IMS for a full list of supported products .

Equivalent Pipe Length Adjustments

Altitude Adjustments

The app adjusts capacity based on altitude. Save your local altitude in settings. You can adjust for the working altitude of any job outside your local area.

Maximum Pipe Length Check

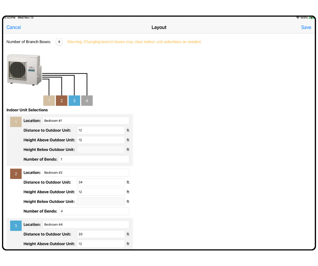

Ductless Layout

Layout view captures pipe length, bends, branch boxes, distribution pipe (joint), and IDU height above or below ODU.

Avoids Common Mistakes*

It won't let you enter an out-of-range value.

The information and design recommendations provided by the Sales Builder Pro application are intended for general guidance and do not constitute a comprehensive design solution for ductless mini-split systems. While Sales Builder Pro strives to provide accurate and reliable design tools, the complexity of ductless system configurations, including engineering formulas, piping layouts, specifications, and connectivity rules, may lead to discrepancies or unique design requirements beyond this application's scope.

You should verify all designs using the original equipment manufacturer's (OEM) design tools and consult with the OEM or other authorized representatives for final validation. Sales Builder Pro does not assume any liability for errors, omissions, or discrepancies in the designs generated by the application or for any damages or consequences arising from reliance on these designs without proper verification.

By using the Sales Builder Pro application, the user acknowledges and accepts full responsibility for ensuring compliance with OEM specifications, industry standards, and applicable laws or regulations.
